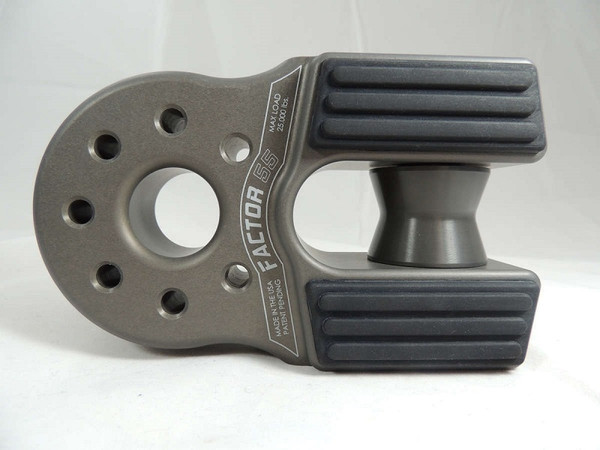

Ford Bronco / Bronco Sport FlatLink XXL by Factor 55
- Brand
- Factor 55
- SKU
- 00090-06-EBA
- MPN
- 00090-06
Compatible with wire rope diameters of up to 3/4″ and synthetic rope tube thimbles up to 5/8″ in diameter. Fits shackle pin diameters of 1 1/8″. 7/8″ diameter titanium double shear pin. Minimum breaking strength of 65,000 lbs.
FlatLink Specifications:
- Replace conventional winch hooks with a safer more secure shackle/D-ring
- Safer recoveries through the practice of Closed System Winching
- Lightweight – Precision CNC machined 6000 series Military Grade Aluminum
- No splicing required – double shear pin design
- Designed for both steel cable and synthetic winch rope eyes
- Equipped with a shear pin load centering spool for wire rope applications
- Foldable and stows rattle free against fairleads
- Integrated EPDM rubber pads for fairlead protection
- Fits common 7/8 and 1” screw pin shackle sizes (1.0 and 1.125 pin diameters)
- For synthetic rope diameters up to 5/8 and wire rope up to 1”
- Available in the Military Specification Hard Anodizing (Mil-A-8625 F Type III) Gray
- 7/8” diameter double shear pin
- Max Rated Load: 26,000 pounds
- Ultimate Strength: 68,000 pounds
- Weight: 51oz
Additional Indormation:
- Weight 3.4 lbs
- Dimensions 7.5 × 5 × 3 in
- Color Gray, Orange, OD Green
