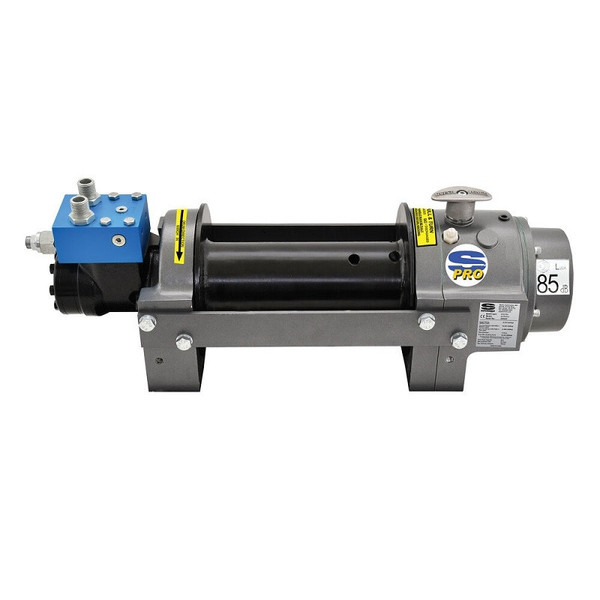

Superwinch H10P hydraulic winches provide users with a heavy-duty solution for the toughest, most demanding commercial/industrial applications All HP Series winches conform to EN 14492-1 and SAE J706 standards, and also meet CE requirements. Powered by a high-torque motor, and a highly efficient 2 stage planetary gearbox, the H10P winch delivers optimum reliability and performance “day in and day out”. The H10P winch is rated at 9,479 pounds (42.2 kN) and features a load control valve to enable the operator precision control of the load. Manual free-spooling and full load holding brakes provide users with reliable, predictable performance on demand. Available in choice of short or long drum configurations, the H10P allows for numerous mounting configuration options depending upon the need (Side, foot, or angle mounted, flat-bed or low-mount). Proven performance, and reliability are hallmarks of Superwinch’s heritage spanning half a century and are backed with a limited lifetime warranty valid worldwide.
Winch Features:
- 9,479 lbs. (42.2 kN) capacity
- 2-Stage planetary
- Gear Ratio: 16:1
- Maximum Oil Pressure: 1,740 psi (120 bar)
- Maximum Oil Flow: 15.8 gpm (60 l/min)
- Standard Drum: 24"L x 8.2"D x 9.0" H
- Long Drum: 26.1"L x 8.2"D x 9.0" H
- Drum Diameter: 4" (101.6 mm)
- Drum Length: standard drum 7.5" (190mm)
- Drum Length: long drum 10" (254mm)
- Replacement Roller Fairled: Part No. 5600 (standard drum) / Part No. 5610 (long drum)
- Optional Cable Tensioner: Part No. 5606 (standard drum) / Part No. 5607 (long drum)
- Installed Weight: standard drum 93 lbs. (42 kg) without wire rope
- Shipping Weight: standard drum 101 lbs. (45.8 kg) without wire rope
- Installed Weight: long drum 99 lbs. (45 kg) without wire rope
- Shipping Weight: long drum 106 lbs. (48 kg) without wire rope
- Meets EN 14492-1, SAE J706 standards and compliant CE requirements
- Available in gray finish
